Extrusion height of rooms

[edaozkan]

Hi,

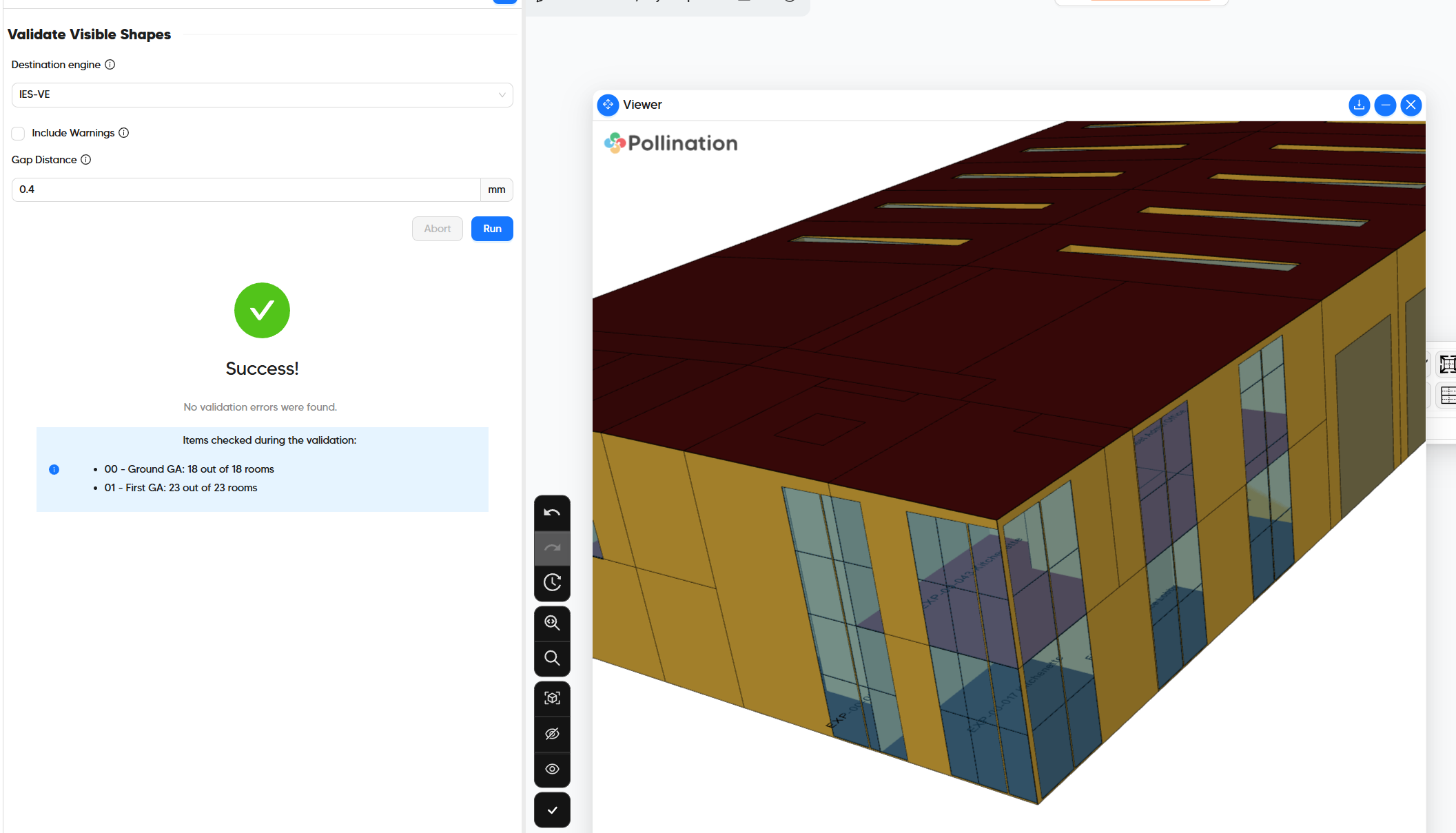

I have extruded all double height spaces to the same level and assigned ‘exterior roof’ as the ceiling boundary condition (the roof is slightly slanted) but some rooms are not following the condition I set. I’ve attached a photo below.

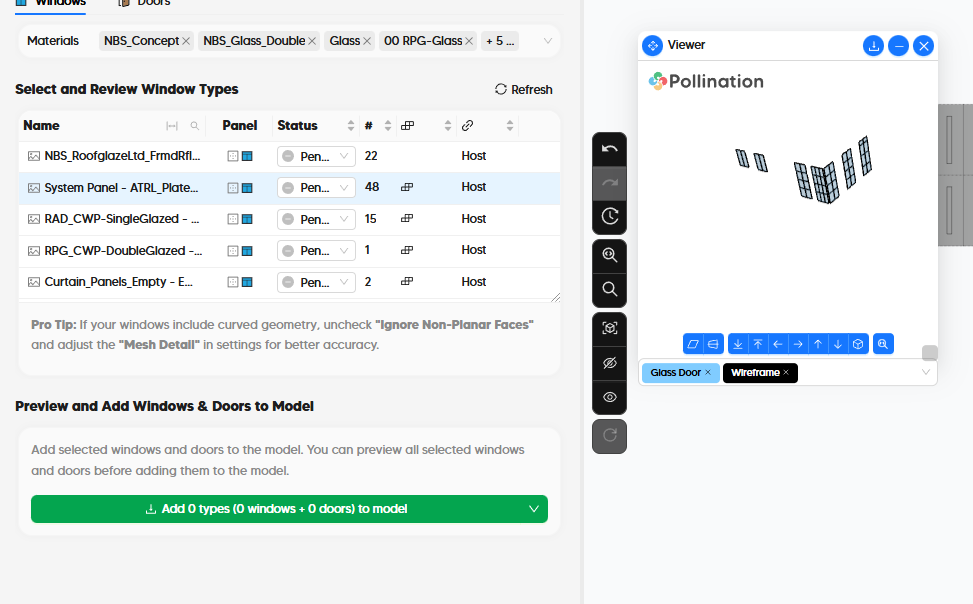

I am also having an issue with the glazing where the preview of this window type is coming up in the viewer, however when I add them into the model, a part of it does not show up

[mostapha]

Hi @edaozkan,

@edaozkan

I have extruded all double height spaces to the same level and assigned ‘exterior roof’ as the ceiling boundary condition (the roof is slightly slanted) but some rooms are not following the condition I set. I’ve attached a photo below.

This is most likely because you still have some roofs in your model. Right click on canvas, select all the roofs, and then press the delete button to delete them. That should remove the roofs and you will see all the rooms just use the extrusion value.

@edaozkan

I am also having an issue with the glazing where the preview of this window type is coming up in the viewer, however when I add them into the model, a part of it does not show up

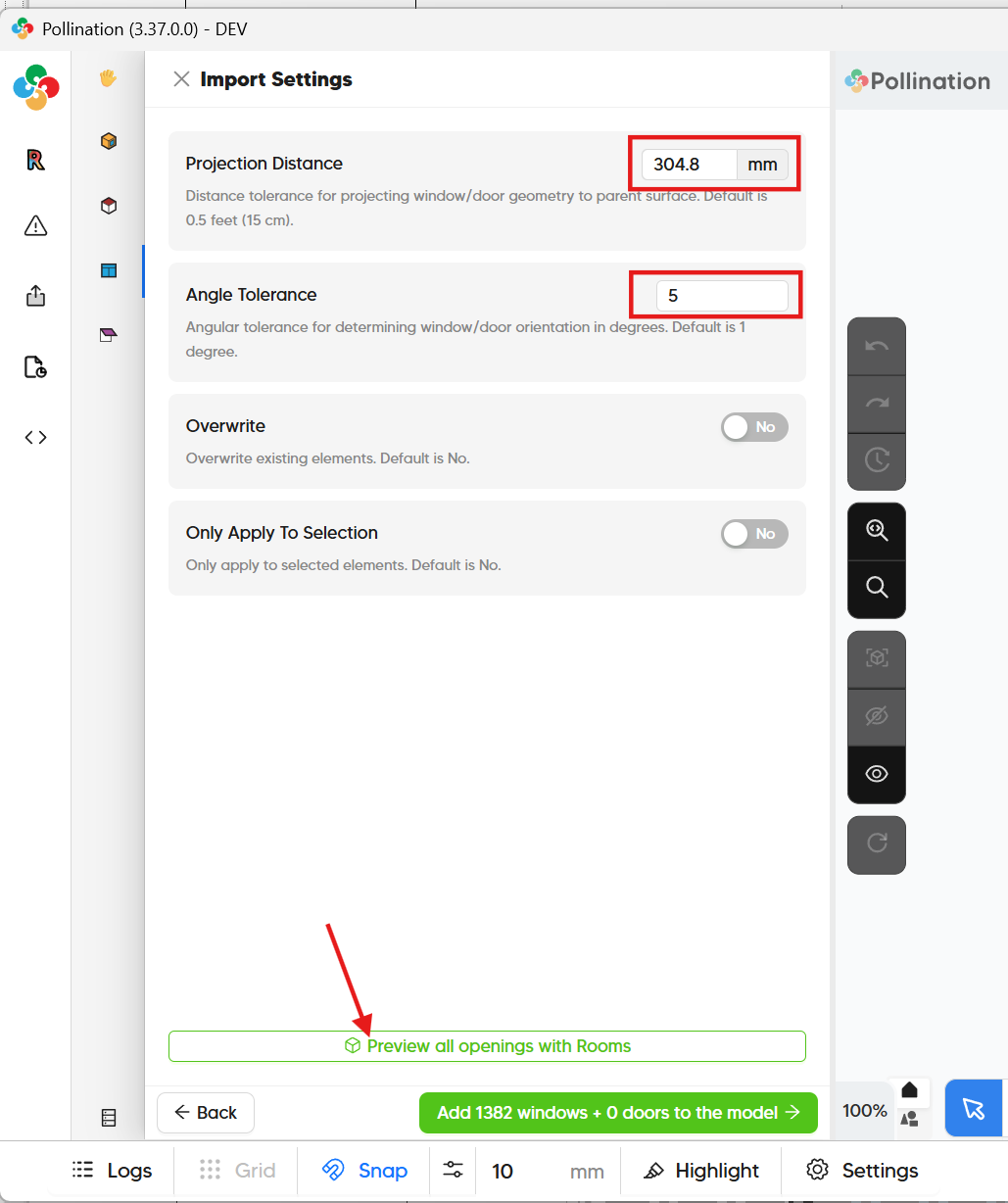

This is most likely because you need to use a larger value for Projection Distance and Angle Tolerance when you add the windows to the rooms.

FYI, we are adding a new preview option to preview the projected windows on the rooms that highlights the missing windows in a different color to make it easier to find the right value for projection distance.

[edaozkan]

Hi thanks for the response,

If I delete the roof, the slant in the ceiling height is not captured.

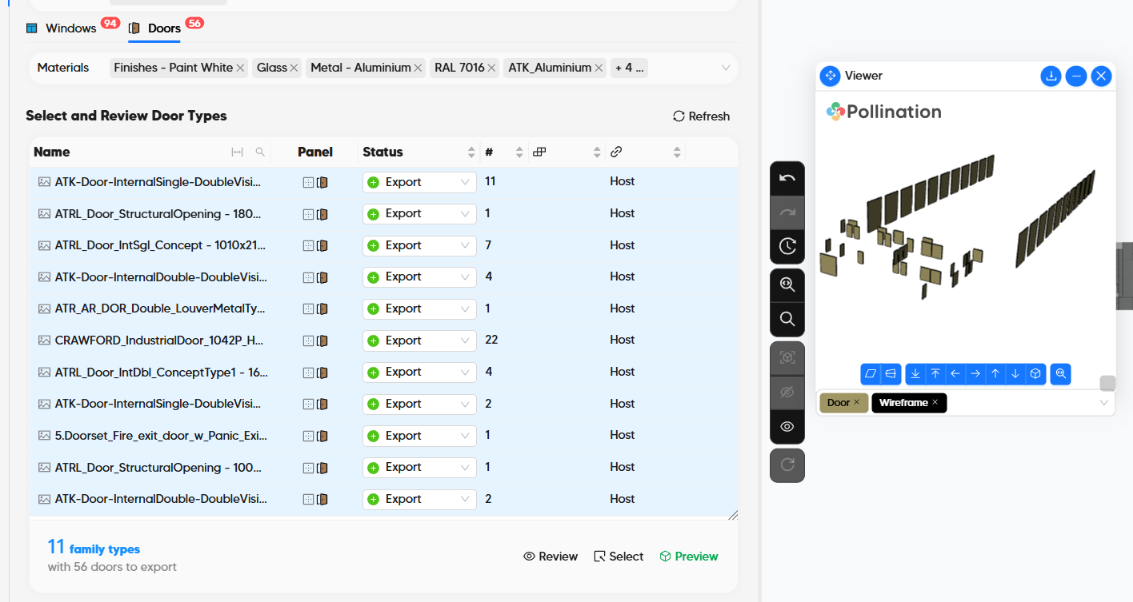

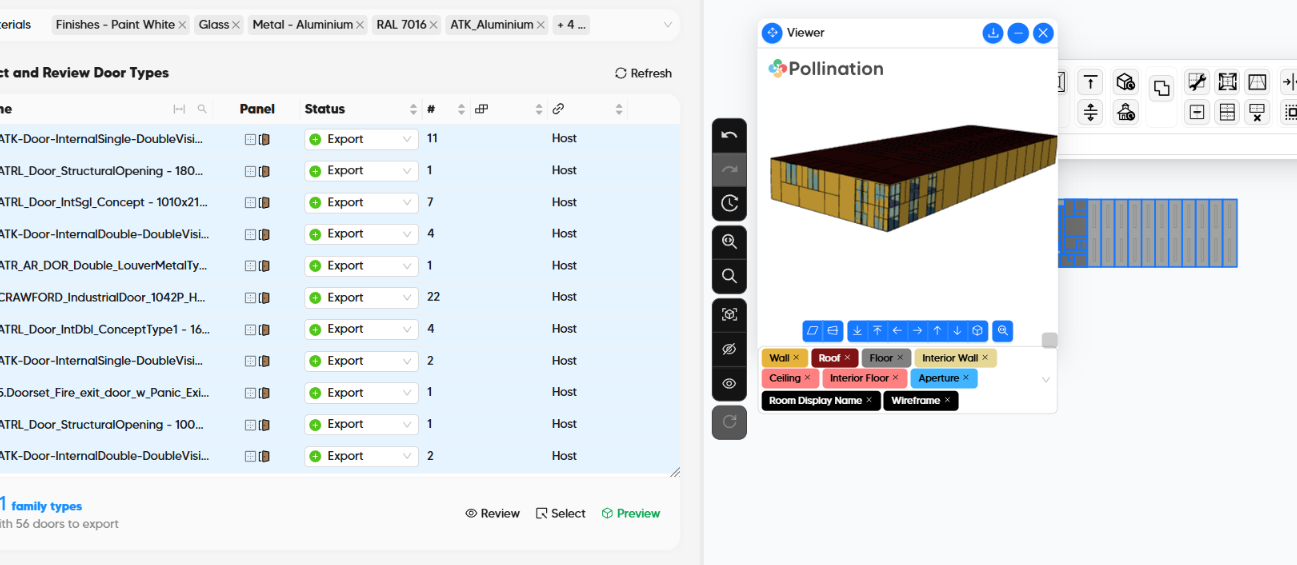

Thanks, the windows now appear in the model, however I cannot get the doors to show up. I can preview them

but none of them show up in the model, I have tried a few different tolerance values to test it out

[mostapha]

Hi @edaozkan,

Can you follow the directions here and download the openings in a separate file? Then share the PoMF and the openings file with me. The PoMF should include the roof.

Windows missing from Exterior and Complex Roof Issue

Hi @krockwell1110, I made you a basic user so you can upload files here or a private message if you don’t want to share the files publicly. You should also feel free to email them to me directly. I also need you to download doors and windows as an HBJSON and share them with me to be able to test the process of projecting them onto the rooms. Here is how: [image]

You can email the files to me directly or share them with me in a private message. I will record a video for you and answer both of your questions.

[mostapha]

Thank you for sharing the model, @edaozkan!

1. The issue with the roof was that two of your rooms that go all the way to the roof are on the ground level, but the roof was assigned to the first level. You need to split the roofs and assign those segments to the ground level.
2. For the doors, I used a projection distance of 300 mm and they appeared as expected. I needed to run one additional command to ensure the door geometries are rectangular.

I shared the updated model with you via email. Let me know if you have any other questions.
