Running Parametric Analysis

Grasshopper Plugin
1

Hi @mostapha,
Sorry for pinging you again and again. I appreciate your patience.
I want to run a parametric analysis for my model which I have made in Rhino plugin of Pollination, however, am not sure how to bring it to grasshopper environment to apply the user inputs and create the jobs.

image1851×696 112 KB

Hope my question is clear enough.
Thanks,

2

Hi @mahagh - no need to apologize. Thank you for documenting all your questions. I’m happy to help!

To link the model from Rhino, try to right-click on the button and select Get Model.


image1579×732 62.3 KB

Let me know if you have any other questions.

3

Got you. Thanks @mostapha,

I went like the below picture to run different WWR, if it makes sense:

image993×676 114 KB

Although the model has shades/windows, it does not recognize here! does it make sense?

image1007×633 75.3 KB

Another question is about parametrizing outer skin properties like opaque shell U-value or glazing VT value for EEM/LEED purposes. Should I do these like the way I parametrized the WWR?

Thanks, in advance.

4

I’m not sure if I follow your comment about the windows. Since you are assigning the apertures based on WWR I imagine you are removing the older ones from the model.

For the shades, you can have to add them back to the model.

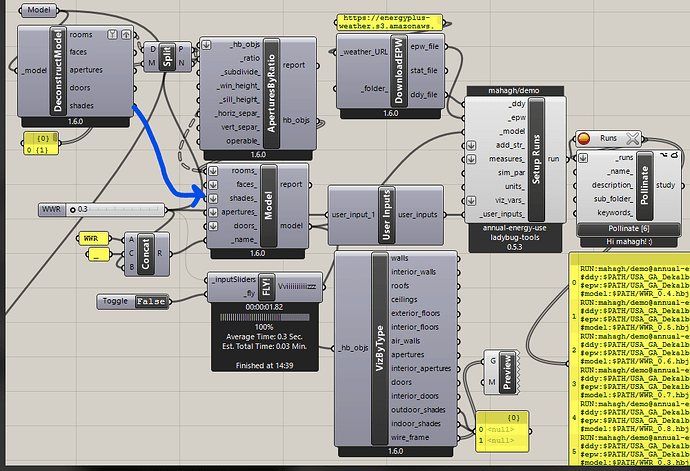

image1000×683 119 KB

Yes. You basically have to add them as new parameters with new sliders.
